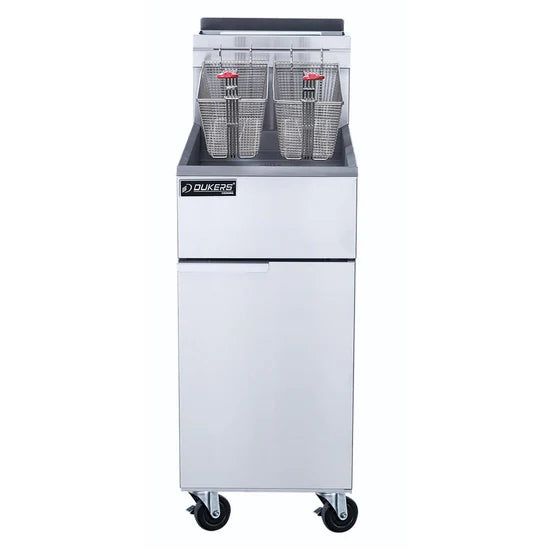

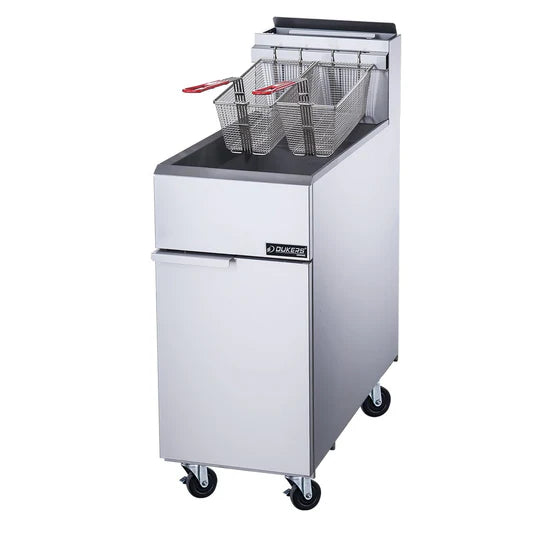

Dukers DCF3-NG Natural Gas Fryer with 3 Tube Burners

The DCF3-NG Natural Gas Fryer with 3 Tube Burners is a high-performance frying solution engineered for commercial kitchens. Featuring three tube-style burners, each generating 30,000 BTU/H for a combined output of 90,000 BTU/H, it ensures rapid and consistent heat distribution. Operating on natural gas with a gas pressure of 4" WC, it offers reliable performance. With a work area of 14.01" x 13.98" and a nozzle size of 39#, it accommodates various frying needs. The fryer includes a durable temperature probe for precise temperature control, ranging from 200°F to 400°F, and is equipped with a Millivolt safety control system for added safety. Its design facilitates easy cleaning, allowing every inch of the frypot and cold zone to be cleaned manually. The large cold zone and forward-sloping bottom effectively collect and remove sediment to maintain oil quality. Backed by a 1-year parts and labor warranty, along with a 5-year warranty on the oil tank, this fryer ensures durability and reliability for commercial kitchen operations.

Features

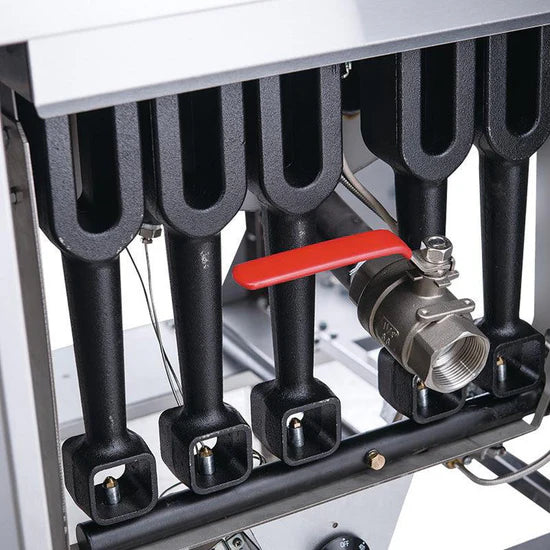

• Three, highly efficient tube red, cast iron burners create a large heat-transfer area for reliable, even heat distribution. Our durable temperature probe senses temperature changes and activates a quick burner response.
• The temperature for the DCF3-LPG/DCF3-NG ranges from 200°F (93°C) to 400°F (204°C). Includes Millivolt safety control system.
• Every inch of the frypot and cold zone can be cleaned and wiped down by hand.
• The large cold zone and forward sloping bottom help collect and remove sediment from the frypot to safeguard oil quality and support routine frypot cleaning.
• 1 Year Parts and Labor Warranty, 5 Year Warranty on Oil Tank

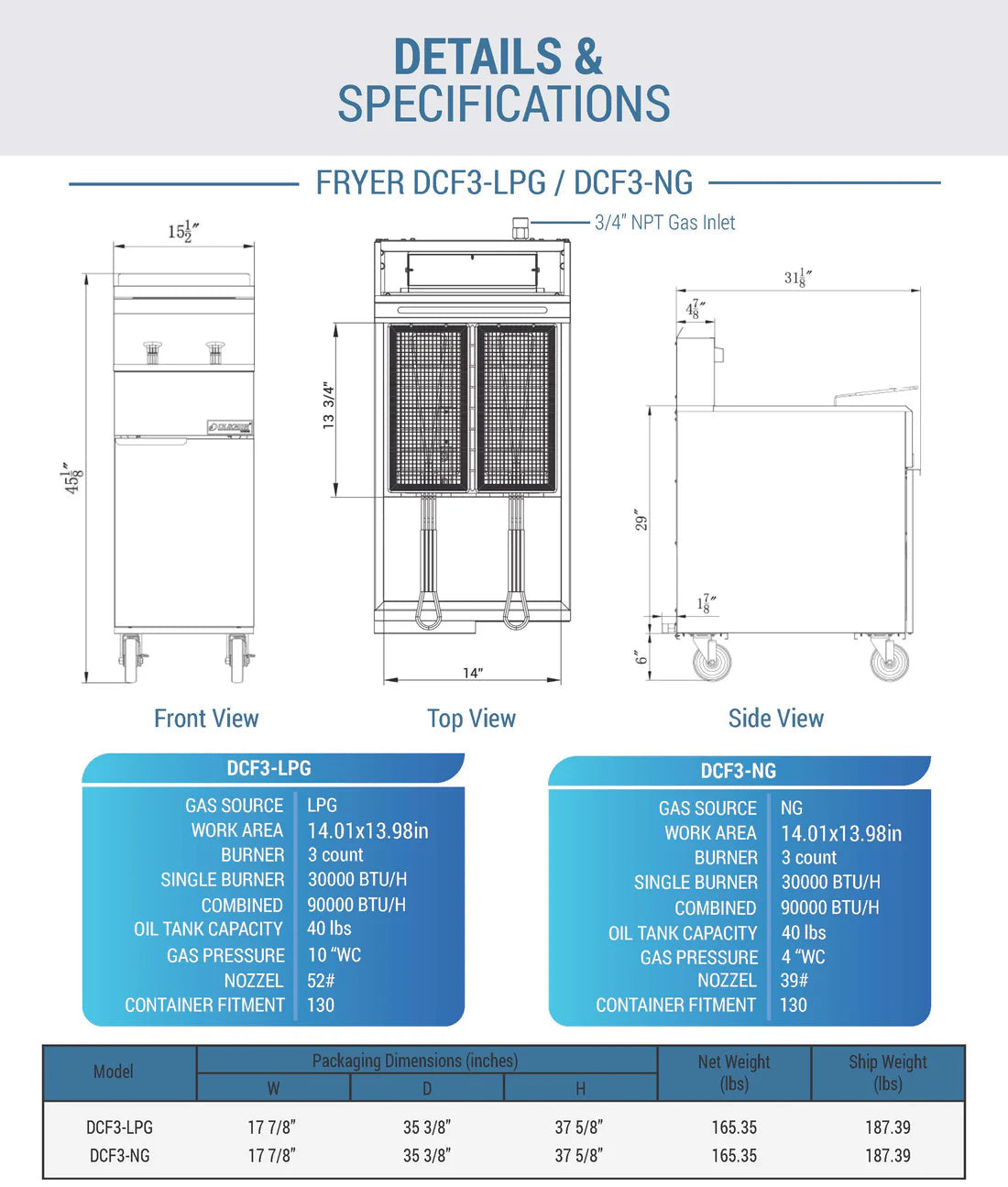

Technical Specifications

• GAS SOURCE: NG (Natural Gas)
• BURNER: 3 count
• SINGLE BURNER: 30000 BTU/H
• COMBINED: 90000 BTU/H
• GAS PRESSURE: 4“ WC
• WORK AREA: 14.01" x 13.98"
• NOZZLE: 39#
• OIL TANK CAPACITY: 40lbs
