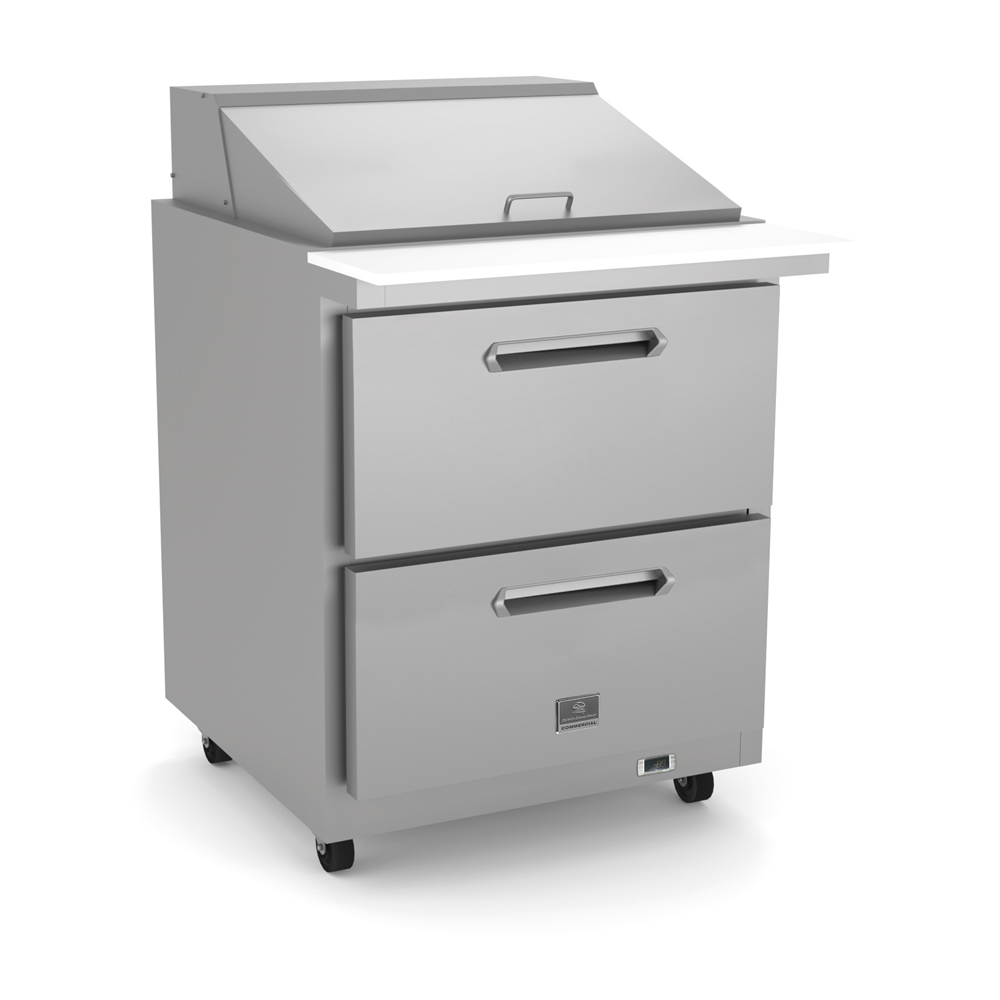

Kelvinator 2-drawer prep table

Features

• Kelvinator 2-drawer prep table
• External temperature display.
• Removable gasket for easy cleaning operations.
• Fin & Tube Condenser improves performance in high temperature environments.
• Automatic Defrost Cooling System provides worry-free performance.
• Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
• Full Depth cutting board.
• Cabinet completely insulated with high density polyurethane for low environmental impact.
• Heavy duty casters.
• Insulated lid maintains food freshness.
• Pre-wired heavy duty power cord.
• Magnetic gasket removable without tools for easy cleaning.

Specifications

Key Information:

•  Gross capacity: 7 cu.feet

Refrigeration Data

•  Condenser type: Fin & tube
•  Operating temperature min.: 32 °F
•  Compressor power: 1/5 hp
•  Operating temperature max.: 41 °F
•  Defrost type: Auto Defrost
•  Gross capacity: 7 cu.feet

Refrigeration Data

•  Condenser type: Fin & tube
•  Operating temperature min.: 32 °F
•  Compressor power: 1/5 hp
•  Operating temperature max.: 41 °F
•  Defrost type: Auto Defrost

•  Warranty: 3 / 5 years
•  External dimensions, Width: 28 15/16" (735 mm)
•  External dimensions, Depth: 35 7/16" (900 mm)
•  External dimensions, Height: 43 5/16" (1100 mm)
•  Internal Dimensions (depth): 23 13/16" / (605 mm)
•  Internal Dimensions (height): 23 1/2" / (597 mm)
•  Internal Dimensions (width): 24 1/16" / (611 mm)
•  Shipping height: 47 1/4" (1200 mm)
•  Shipping weight: 273 lbs (124 kg)
•  Shipping volume: 29.88 ft³ (0.85 m³)
•  Type of external material: Stainless Steel
•  Type of internal material: Polystyrene
•  Approvals ETL C&US;ETL SANITATION
•  N° of drawers: 2

Electric

•  Supply voltage: 115 V/1 ph/60 Hz
•  Electrical power, max: 0.52 kW
•  Plug type: USA NEMA 5-15P

Sustainability

•  Current consumption: 3 Amps
•  Refrigerant type: R290
•  GWP Index: 3
•  Refrigerant weight: 85 g

Capacity:

•  Gross capacity: 7 cu.feet

Refrigeration Data

•  Condenser type: Fin & tube
•  Operating temperature min.: 32 °F
•  Compressor power: 1/5 hp
•  Operating temperature max.: 41 °F
•  Defrost type: Auto Defrost
