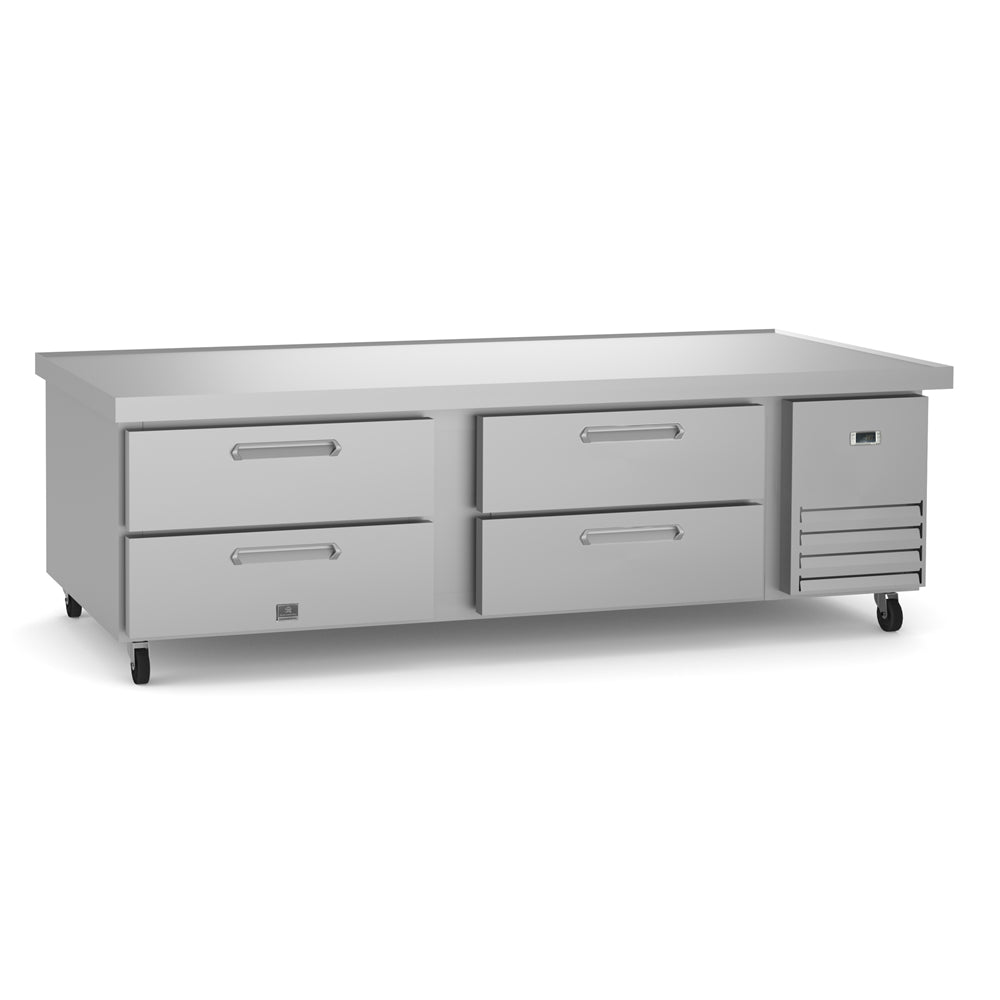

Kelvinator Refrigerated bases 4-Drawer Chef Base Refrigerator 74" Long
-
Estimated Delivery:Mar 28 - Apr 01
-
Free Shipping & Returns: On all orders over $75
Kelvinator Refrigerated bases 4-Drawer Chef Base Refrigerator 74" Long
Features
-
External temperature display.
-
Removable gasket for easy cleaning operations.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Reccomended maximum temperature on worktop surface is 572°F.
-
Insulation of the top guaranteed thanks to the Integrated ceramic fiber heat shield.
-
Stainless steel interior and exterior, durable and easy to clean for daily commercial use.
-
Heavy duty casters.
-
Pre-wired heavy duty power cord.
-
Magnetic gasket removable without tools for easy cleaning.
-
Heavy duty drawer runners.
Specifications
Key Information:
- Warranty 3 / 5
- External dimensions, Width: 74 1/32" (1880 mm)
- External dimensions, Depth: 31 7/8" (810 mm)
- External dimensions, Height: 26 " (660 mm)
- Internal Dimensions (depth): 26 13/16" / (680.72 mm)
- Internal Dimensions (height): 13 11/16" / (347.98 mm)
- Internal Dimensions (width): 51 13/16" / (1315.72 mm)
- Net weight: 287 lbs (130 kg)
- Shipping width: 32 7/8" (835 mm)
- Shipping depth: 75 3/16" (1910 mm)
- Shipping height: 28 3/8" (720 mm)
- Shipping weight: 359 lbs (163 kg)
- Shipping volume: 40.55 ft³ (1.15 m³)
- Approvals ETL C&US;ETL SANITATION
- N° of drawers: 4
- Gross capacity: 355 lt
Refrigeration Data
- Condenser type: Fin & tube
- Operating temperature min.: 0 °C
- Operating temperature max.: 5 °C
- Compressor power: 1/5 hp
- Defrost type: Auto Defrost
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.22 kW
- Plug type: USA NEMA 5-15P
Sustainability
- Current consumption: 2.1 Amps
- Refrigerant type: R290
- Refrigerant weight: 80 g
CAD Drawings
BIM/Revit
Spare Parts Catalogue(pdf)
Spare Parts Catalogue(.xlsx)
