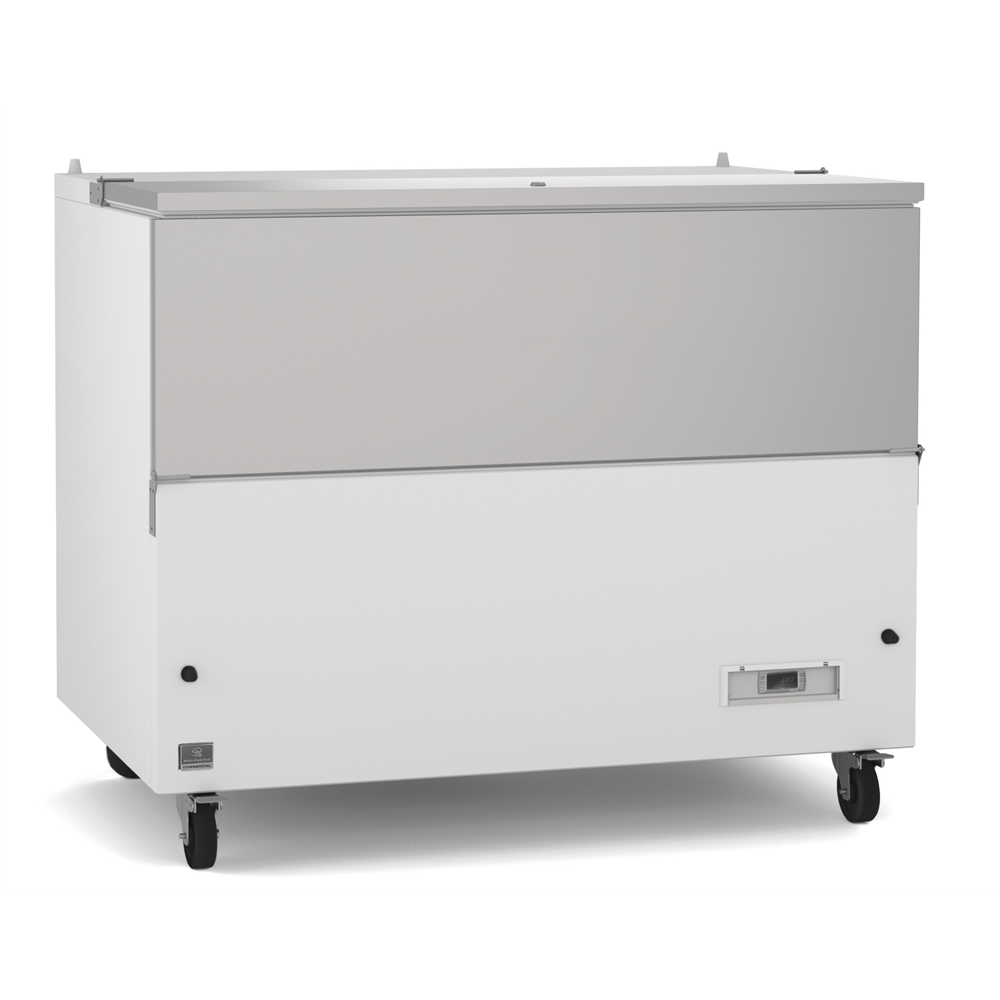

Kelvinator Refrigeration Equipment 12-Crate Milk Cooler 50" Long

Kelvinator Refrigeration Equipment 12-Crate Milk Cooler 50" Long

• External temperature display.
• Removable gasket for easy cleaning operations.
• Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
• Cabinet completely insulated with high density polyurethane for low environmental impact.
• Heavy-duty, locking casters keeps the unit in place but allow position adjusting.
• Locking lid to protect contents of the unit.
• Internal drain for easy clean out.
• Pre-wired heavy duty power cord.
• Cold Wall evaporator.

Specifications

Key Information:

•  Warranty: 3 / 5 years
•  External dimensions, Width: 49 1/32" (1245 mm)
•  External dimensions, Depth: 30 9/16" (777 mm)
•  External dimensions, Height: 42 1/64" (1067 mm)
•  Internal Dimensions (depth): 26 1/2" / (673.1 mm)
•  Internal Dimensions (height): 25 1/2" / (647.7 mm)
•  Internal Dimensions (width): 45 11/16" / (1160.78 mm)
•  Shipping height: 48 5/8" (1235 mm)
•  Shipping weight: 282 lbs (128 kg)
•  Shipping volume: 46.13 ft³ (1.31 m³)
•  Type of external material: Prepainted white
•  Type of internal material: Stainless Steel
•  Approvals ETL C&US;ETL SANITATION

Electric Kelvinator Refrigeration Equipment 12-Crate Milk Cooler 50" Long

•  Supply voltage: 115 V/1 ph/60 Hz
•  Electrical power, max: 0.21 kW
•  Plug type: USA NEMA 5-15P

Sustainability

•  Current consumption: 3 Amps
•  Refrigerant type: R290
•  GWP Index: 3
•  Refrigerant weight: 90 g

Capacity:

•  Gross capacity: 18 cu.feet

Refrigeration Data

•  Condenser type: Fin & tube
•  Operating temperature min.: 35.6 °F
•  Compressor power: 1/3 hp
•  Operating temperature max.: 37.4 °F
•  Defrost type: Auto Defrost
