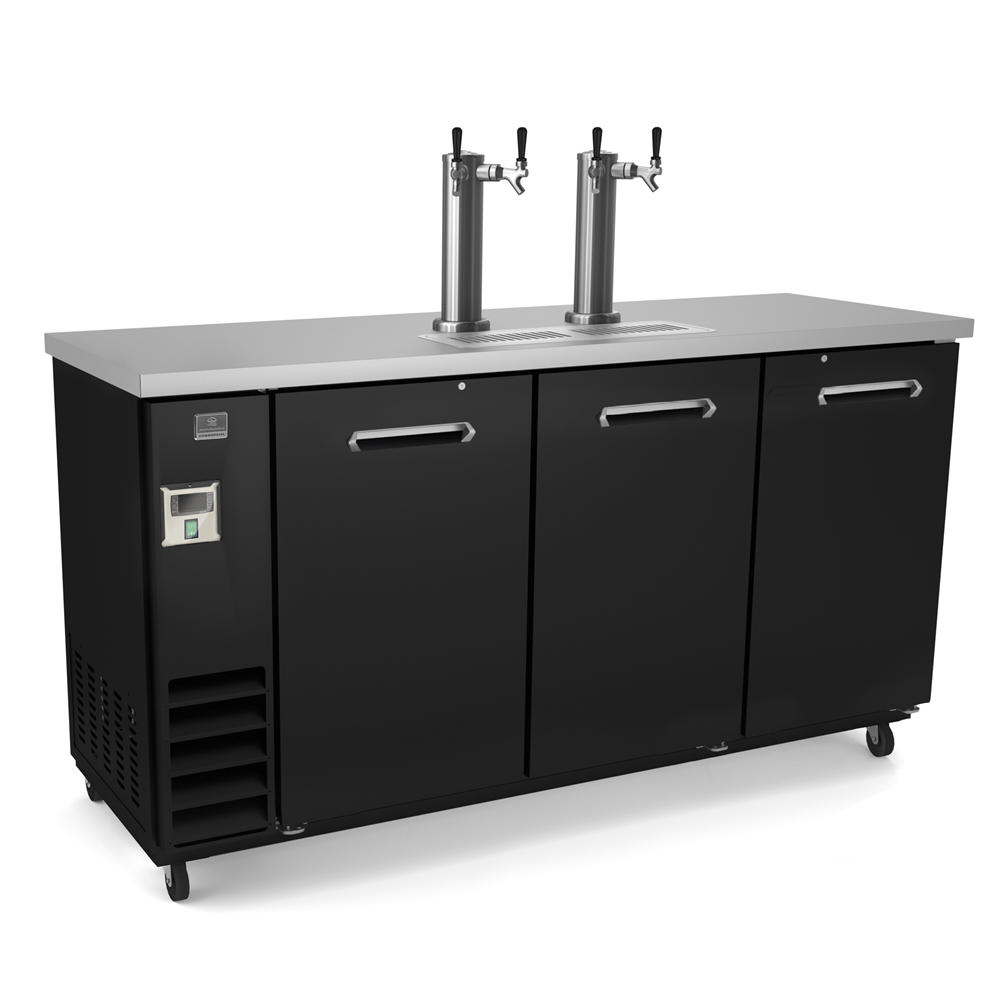

Kelvinator Refrigeration Equipment 3-Door 2-Tower Draft Box 73" Long
-
Estimated Delivery:Jun 16 - Jun 20
-
Free Shipping & Returns: On all orders over $75
Kelvinator Refrigeration Equipment 3-Door 2-Tower Draft Box 73" Long
Features
-
External digital temperature display.
-
External temperature display.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Automatic Defrost Cooling System provides worry-free performance.
-
Locking doors.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Lockable door.
-
Self-closing door with 90-degree stay-open feature.
-
Heavy duty casters.
-
Pre-wired heavy duty power cord.
-
Heavy duty door hinges.
-
Magnetic gasket removable without tools for easy cleaning.
Specifications
Refrigeration Data
- Current absorbed: 3 Amps
- Condenser type: Fin & tube
- Operating temperature min.: 32 °F
- Compressor power: 1/5 hp
- Operating temperature max.: 41 °F
- Defrost type: Auto Defrost
Capacity:
- Gross capacity: 20.8 cu.feet
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 130 g
Key Information:
- Number and type of grids (included): 4 - Vinyl-Coated Steel
- Warranty: 3 / 5 years
- Door hinges: 1 Left+2 Right
- External dimensions, Width: 73 1/16" (1856 mm)
- External dimensions, Depth: 24 7/16" (620 mm)
- External dimensions, Height: 56 15/16" (1446.5 mm)
- Number and type of doors: 3 Full
- Internal Dimensions (depth): 20 " / (508 mm)
- Internal Dimensions (height): 28 " / (711.2 mm)
- Internal Dimensions (width): 60 " / (1524 mm)
- Shipping height: 58 11/16" (1490 mm)
- Shipping weight: 375 lbs (170 kg)
- Shipping volume: 67.83 ft³ (1.92 m³)
- Type of external material: Black Prepainted Steel
- Type of internal material: Stainless Steel
- Approvals ETL C&US;ETL SANITATION
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.31 kW
- Plug type: USA NEMA 5-15P
CAD Drawings
BIM/Revit
Spare Parts Catalogue(pdf)
Spare Parts Catalogue(.xlsx)
