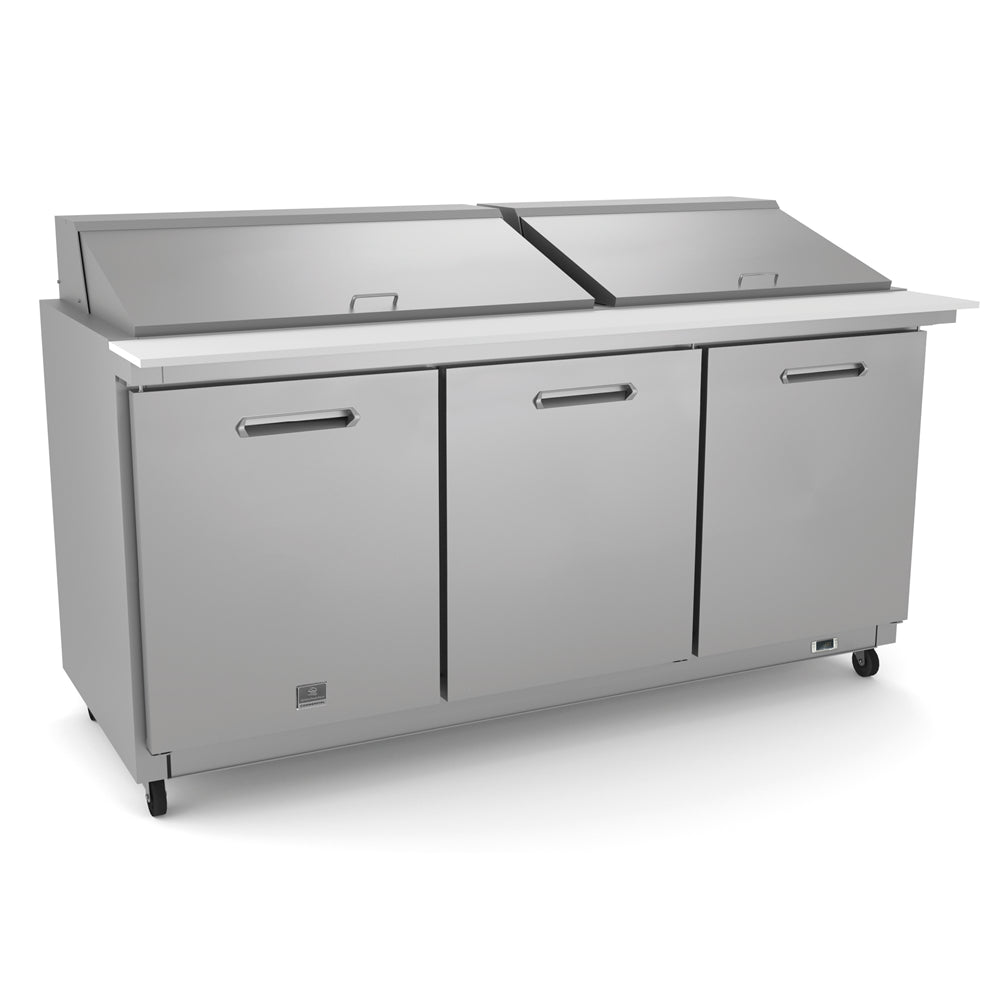

Kelvinator Refrigeration Equipment 3-Door Mega Top Prep 72" Long 30-1/6 Pan
-
Estimated Delivery:Mar 29 - Apr 02
-
Free Shipping & Returns: On all orders over $75
Kelvinator Refrigeration Equipment 3-Door Mega Top Prep 72" Long 30-1/6 Pan
Features
-
External temperature display.
-
Removable gasket for easy cleaning operations.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Automatic Defrost Cooling System provides worry-free performance.
-
Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
-
Full Depth cutting board.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Heavy duty Vinyl coated steel shelves.
-
Self-closing door with 90-degree stay-open feature.
-
Heavy duty casters.
-
Insulated lid maintains food freshness.
-
Holds 30 1/6 pans.
-
Pre-wired heavy duty power cord.
-
Heavy duty door hinges.
-
Magnetic gasket removable without tools for easy cleaning.
Specifications
Key Information:
- Number and type of grids (included): 3 - Vinyl-Coated Steel
- Warranty: 3 / 5 years
- Door hinges: 1 Left+2 Right
- External dimensions, Width: 71 3/4" (1822 mm)
- External dimensions, Depth: 35 7/16" (900 mm)
- External dimensions, Height: 43 5/16" (1100 mm)
- Number and type of doors: 3 Full
- Internal Dimensions (depth): 23 13/16" / (605 mm)
- Internal Dimensions (height): 23 1/2" / (597 mm)
- Internal Dimensions (width): 66 7/16" / (1687 mm)
- Shipping height: 47 1/4" (1200 mm)
- Shipping weight: 448 lbs (203 kg)
- Shipping volume: 71.8 ft³ (2.03 m³)
- Type of external material: Stainless Steel
- Type of internal material: Polystyrene
- Approvals ETL C&US;ETL SANITATION
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.72 kW
- Plug type: USA NEMA 5-15P
Sustainability
- Current consumption: 4.3 Amps
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 95 g
Capacity:
- Gross capacity: 18 cu.feet
Refrigeration Data
- Condenser type: Fin & tube
- Operating temperature min.: 32 °F
- Compressor power: 1/3 hp
- Operating temperature max.: 41 °F
- Defrost type: Auto Defrost
CAD Drawings
BIM/Revit
Spare Parts Catalogue(pdf)
Spare Parts Catalogue(.xlsx)
