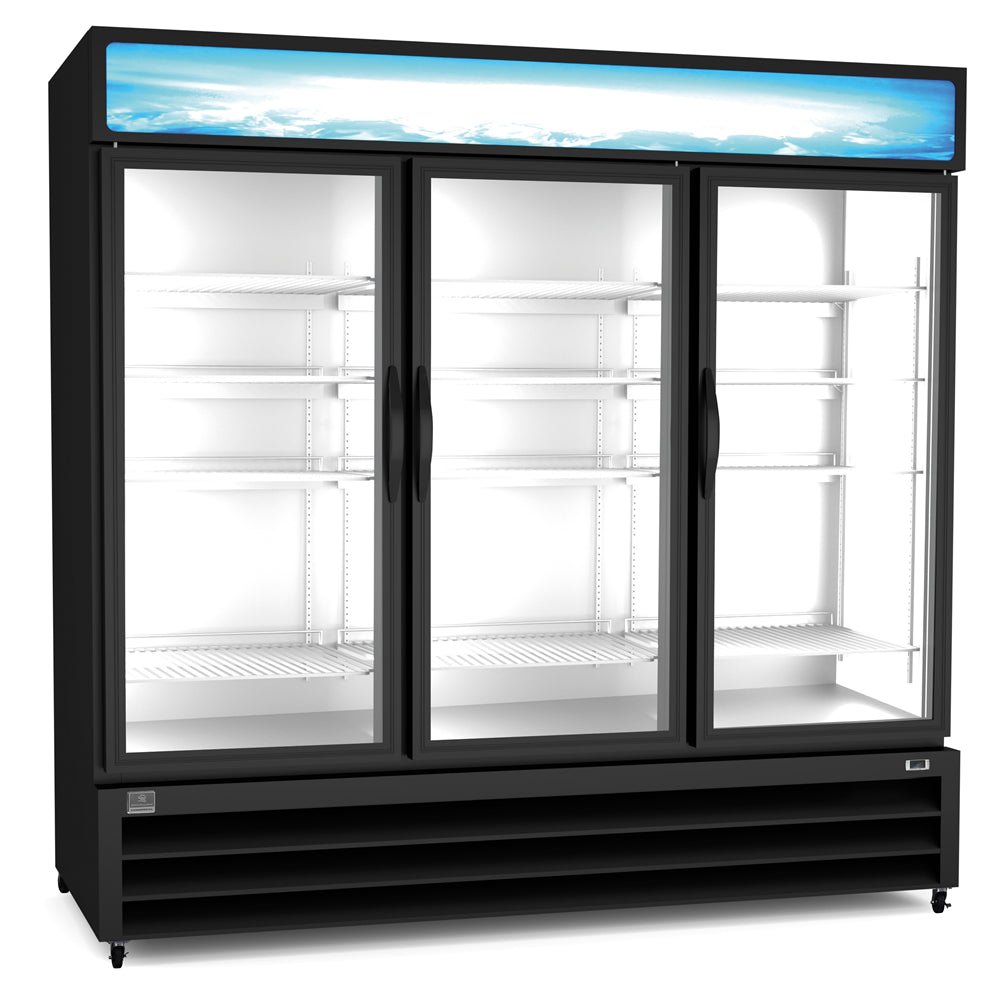

Kelvinator Refrigeration Equipment 3-Hinged Glass Door Full Height Merchandiser Freezer 81" Long
Kelvinator Refrigeration Equipment 3-Hinged Glass Door Full Height Merchandiser Freezer 81" Long
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Kelvinator Refrigeration Equipment 3-Hinged Glass Door Full Height Merchandiser Freezer 81" Long
Features
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Heavy duty Vinyl coated steel shelves.
-
Removable gasket for easy cleaning operations.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Automatic Defrost Cooling System provides worry-free performance.
-
External temperature display.
-
Refrigerant type: R290.
-
Lockable door.
-
Magnetic gasket removable without tools for easy cleaning.
-
Electronic control to select temperatures.
-
Pre-wired heavy duty power cord.
-
Heavy duty door hinges.
Specifications
Key Information:
- Warranty: 3 / 5 years
- Door hinges: 1 Left+2 Right
- External dimensions, Width: 81 " (2057 mm)
- External dimensions, Depth: 31 7/8" (810 mm)
- External dimensions, Height: 83 11/16" (2126 mm)
- Number and type of doors: 3 Glass
- Internal Dimensions (depth): 27 1/2" / (698.5 mm)
- Internal Dimensions (height): 52 3/8" / (1330.96 mm)
- Internal Dimensions (width): 76 3/8" / (1940.56 mm)
- Shipping height: 85 13/16" (2180 mm)
- Shipping weight: 774 lbs (351 kg)
- Shipping volume: 142.86 ft³ (4.05 m³)
- Type of external material: Black Prepainted Steel
- Type of internal material: White Prepainted Aluminium
- Approvals ETL C&US;ETL SANITATION
Electric
- Supply voltage: 115-230 V/1 ph/60 Hz
- Electrical power, max: 1.08 kW
- Plug type: USA NEMA L14-20P
Sustainability
- Current consumption: 9 Amps
- Refrigerant type: R290
- Refrigerant weight: 150 g
Capacity:
- Number and type of grids (included): 12 - 618x600
- Gross capacity: 72 cu.feet
Refrigeration Data
- Condenser type: Fin & tube
- Operating temperature min.: -10.01 °F
- Compressor power: 1 ½ hp
- Operating temperature max.: 0 °F
- Defrost type: Auto Defrost
CAD Drawings
BIM/Revit
Spare Parts Catalogue(pdf)
Spare Parts Catalogue(.xlsx)
